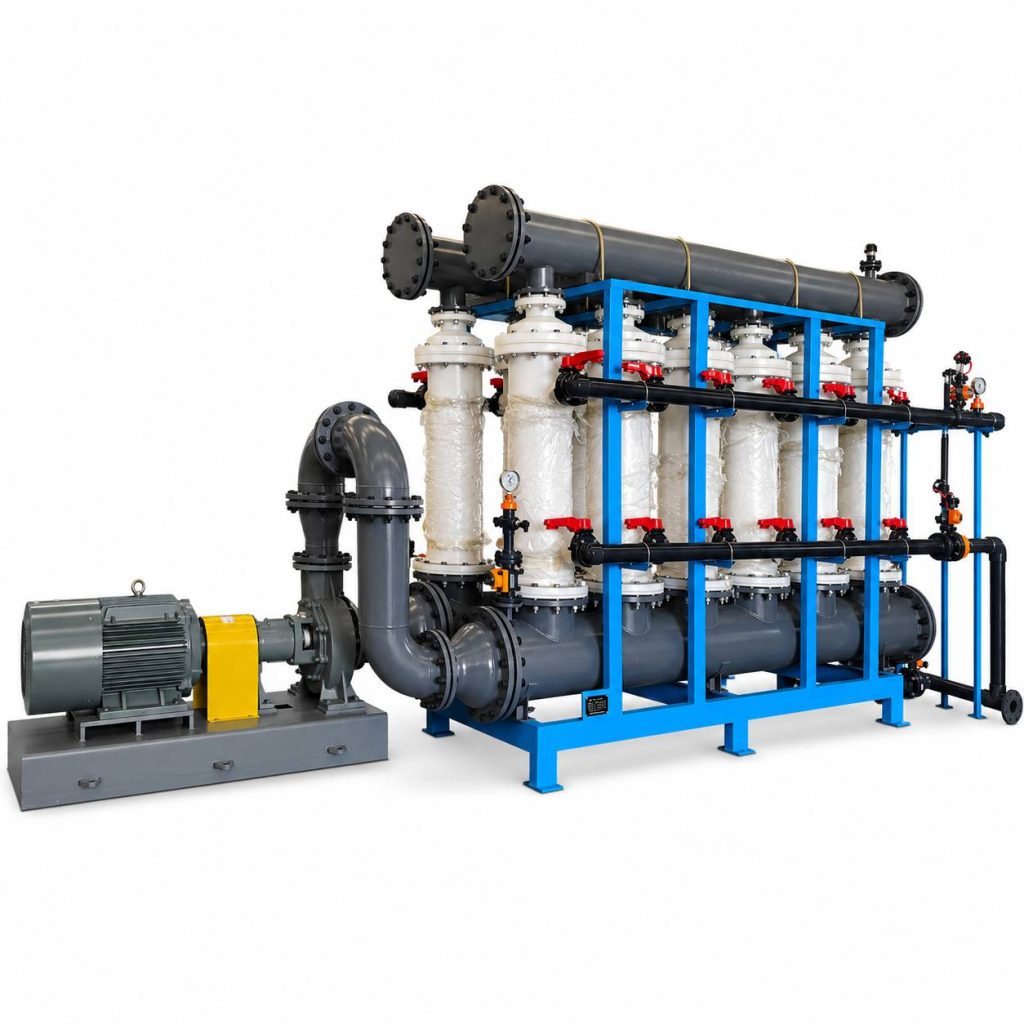

This Membrane Filtration Systems for oilfield reinjection water utilizes inorganic tubular ceramic membrane cross-flow filtration technology. It is tailor-made to address the characteristics of industrial oily wastewater, such as severe emulsification, high COD, and difficult oil-water separation. Compared with traditional processes like oil skimming, dissolved air flotation, and activated carbon adsorption, the ceramic membrane features exceptional hydrophilicity, oil resistance, high-temperature tolerance, and acid/alkali resistance. It can efficiently intercept emulsified oil, suspended oil, fine solid particles, and colloidal impurities in the wastewater, thoroughly breaking stable emulsions and significantly reducing effluent oil content and suspended solids (SS) levels. The equipment demonstrates strong resistance to oil fouling and can rapidly restore membrane flux through online cleaning with acids, alkalis, or chemical agents, effectively resolving industry pain points associated with organic membranes, such as easy clogging, aging, and difficulty in regeneration.
- Filter Dimensions: 5850 mm × 1850 mm × 2950 mm (L × W × H)
- Filter Weight: 2,500 kg
- Membrane Area: 146.5 m²
- Wastewater Treatment Capacity: 25 t/h
- Membrane Material: Alumina Inorganic Ceramic Membrane
- Fluid Contact Material: PP (Polypropylene)
- Sealing Material: EPDM, PTFE
- Applicable pH Range: 0–14
- Operating Temperature Range: -10°C to 150°C
- Control Mode: Fully Automatic PLC Control
- Cleaning Method: Online Backwashing + Chemical Cleaning-in-Place (CIP)
